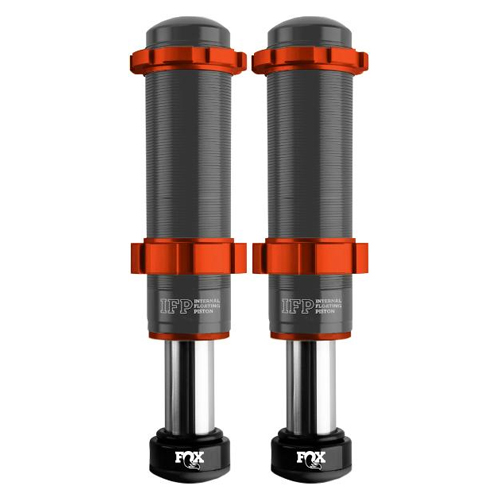

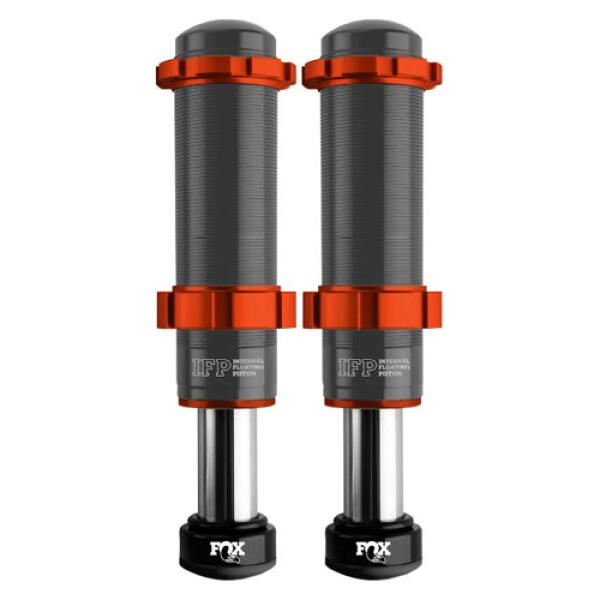

FACTORY RACE SERIES 2.0 BUMP STOP IFP (PAIR)

Code: 883-02-154
FACTORY RACE SERIES 2.0 BUMP STOP IFP (PAIR)

$1,101.79

Available on backorder

Available on backorder

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
Store Location
Working Hours
Telephone
Availability
La Casa del Jeep - San Germán
CARR #2 KM 168.5 San German, 00683, Puerto Rico
Monday – Saturday: 09:00 A.M. - 5:00 P.M.
+1 (787) 264-1295
On Backorder
La Casa del Jeep - Santa Isabel
2JGJ+WJH, PR-153, Coamo, Santa Isabel 00757, Puerto Rico
Monday – Saturday: 09:00 A.M. - 5:00 P.M.
+1 (787) 710-4900
On Backorder

Description

Inspired by it’s off-road racing predecessors, the new Factory Race Series bump stop combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel.

The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad.

Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.

Body Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
Components Black anodized, CNC machined 6061-T6 billet aluminum
Pad Replaceable Delrin¨ strike pad
Shaft Hard chrome plated 1-1/4″ 4130 steel with Internal Floating Piston (IFP) for increased damping performance
Piston Heavy-duty powdered steel
Valving Tunable, velocity sensitive deburred valve shims
Seals Redundant sealing pack system, main seal, wiper seal, scraper seal
Adjustments Nitrogen pressure
Extended 12.287
Compressed 10.433
Travel 1.854
Top Mount Threaded Body
Bottom Mount None
Replaces Part Number 883-02-129
